Main Connector

The main connector for external power and I/O is compatible with Molex 430451206 (Micro-Fit 3.0™ Series) or Würth Elektronik 662012230822 (WR-MPC3 Series)

  • Fully isolated contacts
  • Full polarization
  • Positive locks
  • Pitch: 3.0mm (.118″)
  • Flammability rating: UL 94-V0

(For voltage and current ratings please see the paragraph Electrical Characteristics)

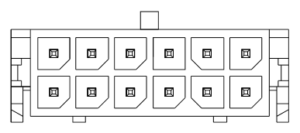

12 7
6 1

(Front view)

Pin Name Description Pin Name Description
1 SOS (DIO6) Ignition / Digital IO 7 IGN (DIO5) SOS / Digital IO
2 AIO4 Analog In / Digital IO 8 AIO3 Analog In / Digital IO
3 AIO2 Analog In / Digital IO 9 AIO1 Analog In / Digital IO
4 IO2 Expansion IO 10 IO1 Expansion IO
5 CANL CAN Bus Interface 11 CANH CAN Bus Interface
6 GND Ground / Negative Supply 12 VEXT Positive Supply
